DesignSpark PCB is a powerful, easy-to-use free PCB design tool, as well as a free schematic making and PCB layout tool. It can provide users with many PCB design aids such as schematic capture, printed circuit board design and layout for free. Which is modern, intuitive, and easy to use and use. The actual design is not limited by board size, layout and pin count, and can generate industry-standard Gerber files. This tool is suitable for professional designers, hobbyists, teaching trainers and students.
DesignSpark PCB supports various functions such as Gerber (Extended) export, excellon plots, Drawing Interchange Format (DXF, Drawing Interchange Format) import/export, Intermediate Data Format (IDF, Intermediate Data Format) export, automatic router, design rule checking and Import design and Eagle design files and libraries. With the Gerber (expansion) output, the designer can choose who makes the board.
In order to solve the Gerber file preview on electronic engineers' product design, AiPCBA has designed a free online 3D Gerber file viewer tool. Gerber file 3D viewer click here : Online Gerber viewer.
AiPCBA focuses on one-stop PCBA intelligent manufacturing services, using artificial intelligence and big data technology, it independently developed China's first PCBA flexible intelligent manufacturing platform AiPCBA®. It integrates electronic material supply, product proofing, trial production, and mass production to provide customers with high-quality and efficient services.
Generate Gerber File from DesignSpark

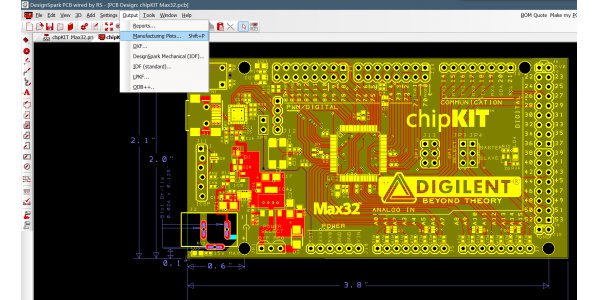

First of all, Please make sure you have finished the board.1.Output- Manufacturing Plots

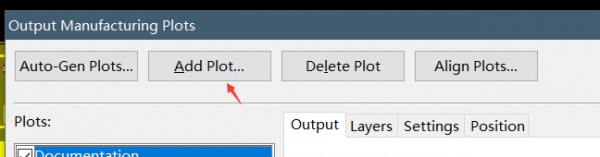

2. Click Auto-Gen Plots. Design spark will add plots automatically.

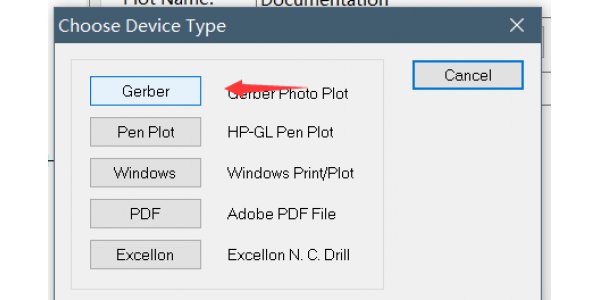

3.Click gerber
4.Ok

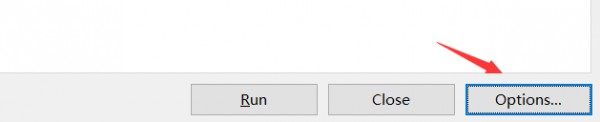

5.Click Options.

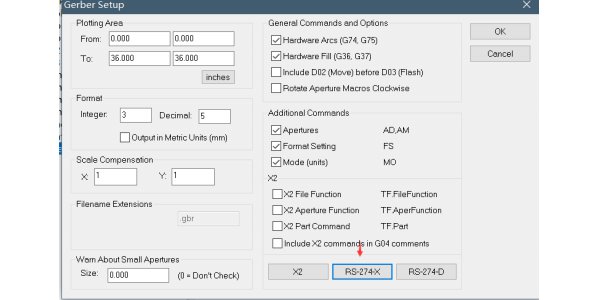

7.Use RS-274X configuration.

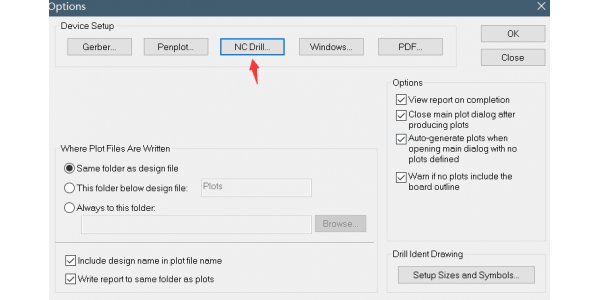

8.Click NC Drill
9.OK

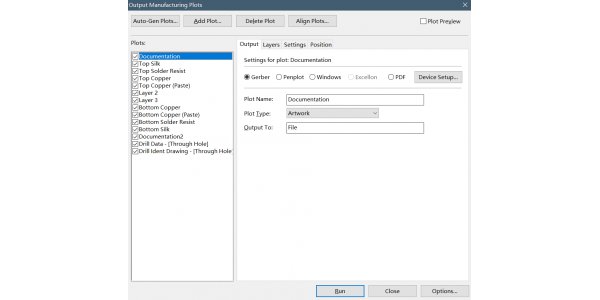

10. Tick off all plots. We don't need them all actually, but to simplify the problem, just tick off all of them.

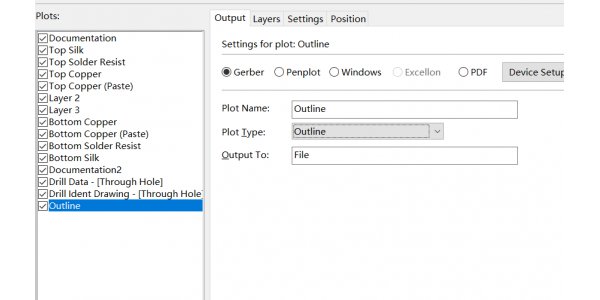

11. Sometimes there is no outline layer. We need to add it manually.
12. Set like this.
13.Run
14. Package them into zip/rar. Then you can use this file to place an order.
