Current PCBs are either single-sided (a layer of copper), or two-sided / double-sided (there is a substrate layer between the two copper layers), or multilayer (multiple of double-sided PCB). Common PCB thicknesses are: 0.70mm, 0.80mm, 0.95mm, 1.00mm, 1.27mm, 1.50mm, 1.60mm, 2.00mm, 2.40mm, 3.00mm, 3.20mm, 3.50mm, 4.00mm, 6.40mm.
Multilayer PCB Standard Size is related to the actual number of layersAiPCBA is a PCB and PCBA manufacturer that can provide one-stop PCB production services, aiming to create a PCB manufacturer with outstanding quality and cost-effectiveness. AiPCBA relies on its 7 years of experience in the electronic processing industry to strictly control the management of circuit board factories, optimize process capabilities, and improve internal and external sales and service levels. We stand out in the competition of PCB manufacturers and support through-hole PCB (Through-Hole PCB), flexible circuit board (FPC), etc. The PCB manufacturing quality and delivery time have won the trust of many customers at home and abroad in the market. Learn more about AiPCBA’s Turnkey PCB Assembly.
Before introducing Multilayer PCB Standard Thickness, let me talk about 2 important PCB stacking concepts

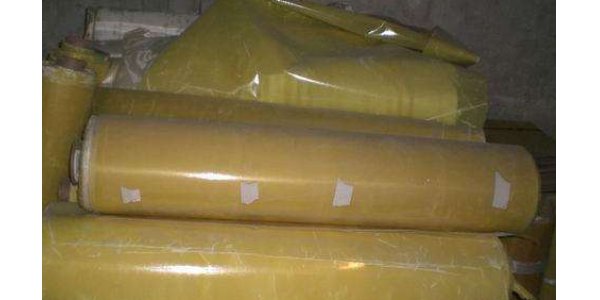

Multilayer PCB the main material: Prepreg and Core
The difference between Prepreg and Core:
1. Prepreg is a material in PCB. The former is semi-solid, similar to cardboard, and the latter is hard, similar to copper;
2. Prepreg is similar to adhesive + insulator; Core is the basic material of PCB, the two are completely different functions;
3. Prepreg can curl but the Core cannot bend;
4. Prepreg is not conductive, and the core has copper layers on both sides, which is the conductive medium of the printed board.
The following table represents a standard multi-layer PCB stack. The final thickness of all typical PCBs listed below is 0.62 inches ± 10%, the copper weight is 1 ounce, and the unit of measurement is in inches.
Unit conversion reference: 0.62 inches = 15.748 mm
Multilayer PCB Standard Thickness and Stack-up
2 Layer Stack-up
| Layer Order | Layer Name | Material Type | Material Description | Dielectric Constant | Thickness | Copper Weight |
| 1 | Top | Copper | Signal | 0.0014" | 1 oz | |
| Core | Core | 4.2 | 0.057" | |||
| 2 | Bottom | Copper | Signal | 0.0014" | 1 oz |
4 Layer Stack-up
| Layer Order | Layer Name | Material Type | Material Description | Dielectric Constant | Thickness | Copper Weight |
| 1 | Top | Copper | Signal | 0.0014" | 1 oz | |
|
2116 (2 sheets) |
Prepreg | 4.2 | 0.0091" | |||
| 2 | Inner 1 | Copper | Plane | 0.0014" | 1 oz | |
| Core | Core | 4.2 | 0.037" | |||
| 3 | Inner 2 | Copper | Plane | 0.0014" | 1 oz | |
|
2116 (2 sheets) |
Prepreg | 4.2 | 0.0091" | |||
| 4 | Bottom | Copper | Signal | 0.0014" | 1 oz |
6 Layer Stack-up
Layer Order
Layer Name
Material Type
Material Description
Dielectric Constant
Thickness
Copper Weight
1
Top
Copper
Signal
0.0014"
1 oz
2116 and 3313
Prepreg
4.2
0.0081"
2
Inner 1
Copper
Plane
0.0014"
1 oz
Core
Core
4.2
0.013"
3
Inner 2
Copper
Plane
0.0014"
1 oz
2116
(2 sheets)
Prepreg
4.2
0.0091"
4
Inner 3
Copper
Plane
0.0014"
1 oz
Core
Core
4.2
0.013"
5
Inner 4
Copper
Plane
0.0014"
1 oz
2116 and 3313
Prepreg
4.2
0.0081"
6
Bottom
Copper
Signal
0.0014"
1 oz
8 Layer Stack-up
Layer Order
Layer Name
Material Type
Material Description
Dielectric Constant
Thickness
Copper Weight
1
Top
Copper
Signal
0.0014"
1 oz
1080
(2 sheets)
Prepreg
4.2
0.0059"
2
Inner 1
Copper
Plane
0.0014"
1 oz
Core
Core
4.2
0.009"
3
Inner 2
Copper
Plane
0.0014"
1 oz
7628
Prepreg
4.2
0.0073"
4
Inner 3
Copper
Plane
0.0014"
1 oz
Core
Core
4.2
0.0051"
5
Inner 4
Copper
Plane
0.0014"
1 oz
7628
Prepreg
4.2
0.0073"
6
Inner 5
Copper
Plane
0.0014"
1 oz
Core
Core
4.2
0.009"
7
Inner 6
Copper
Plane
0.0014"
1 oz
1080
(2 sheets)
Prepreg
4.2
0.0059"
8
Bottom
Copper
Signal
0.0014"
1 oz
