What is KiCad?

KiCad function introduction

With the schematic editor, you can create your designs without limitations. The schematic symbol library and built-in schematic symbol editor help you get started quickly.

Make professional PCB layouts with up to 32 layers. KiCad now has a push and push router that is capable of routing differential pairs and interactively adjusting trace lengths.

Generate Gerber File from KiCad

1) Open KiCad. Go to File -> Open Project... and select the project to open. Click the Open button.

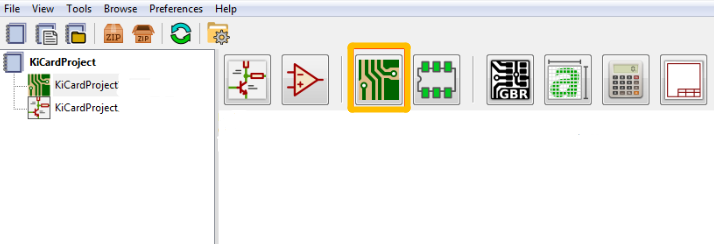

2) Click the PCB Layout Editor button

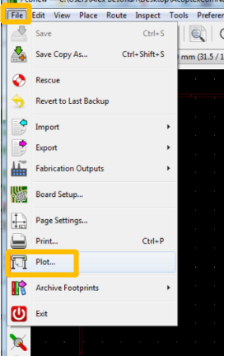

3)Go to File -> Drawing, or find the Drawing icon on the main menu. This will open the plot window

4) Output Directory field - Select the output directory for your Gerber files. Create a new directory so you can create a ZIP archive from it later.
Gerber Options Group - Make sure Use Protel file extension and Generate Gerber files are selected, and Use extended X2 format is deselected, as this will effectively convert the Gerber file's format to X2 which is not supported by all manufacturers' devices.


5) Click the Generate Drill Files button. The Generate Drill File window will pop up. Select Suppress leading zeros and Minimal header options. We also recommend that you select the option to have PTH and NPTH holes in a single file, otherwise KiCad will split plated and non-plated holes into two drill files, and if one is missing, your board will have missing holes. Click the Generate Drill File button.


6)The location where the drill file has now been generated will be displayed under the message window. Click the close button to return to the previous window.

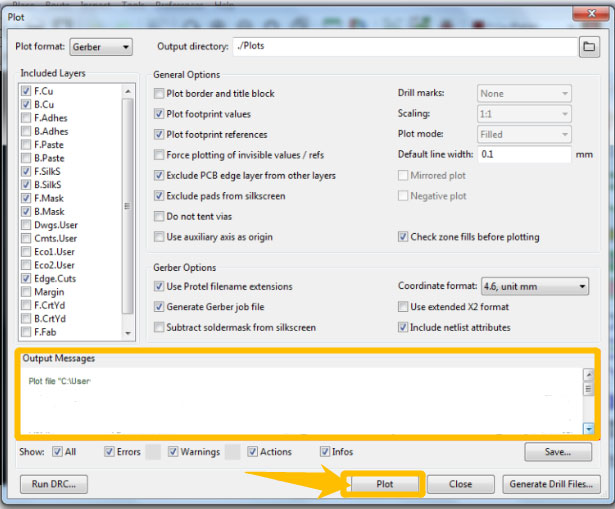

7)Click the Plot button to generate a Gerber file for the layer. Click the Close button.


8)After importing all the layers into Gerber Viewer, you can view each layer individually.
